Luitpoldbrücke

This is an image set within the Bridgemeister collection.

Bridge:Luitpoldbrücke
Location:Passau, Bavaria, Germany - Danube River
Coordinates and Maps:See related inventory record(s).
Image Set Contributor:Richard Ehrenberg
Related Suspension Bridge Inventory:1948 Luitpoldbrücke - Passau, Bavaria, Germany
Related Image Lists:All from Richard Ehrenberg
All in Germany
All Vehicular Suspension Bridges
Credit:All photos by Richard Ehrenberg. Please do not reuse without permission.

This interesting suspension bridge has only one tower. On the far side of the Danube (Donau) River, the cables are anchored directly into the hillside. Rick keenly noticed the one tower is a "rocker" tower and rests on hinges to allow it to pivot (rock) to accommodate changing loads and temperatures.

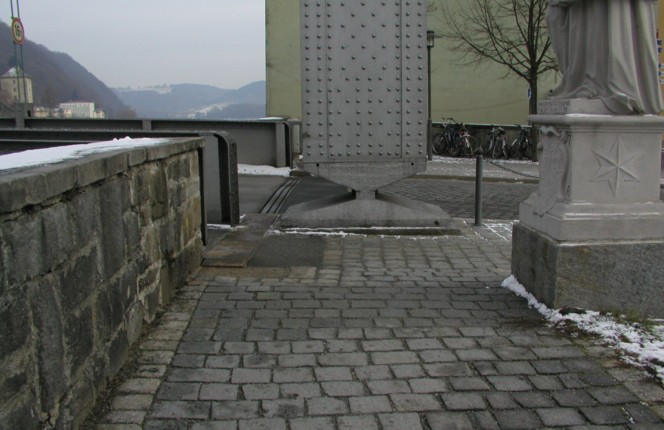

One of the tower hinges.


The hillside anchorage.
