Des Plaines River - Riverside, Illinois, USA

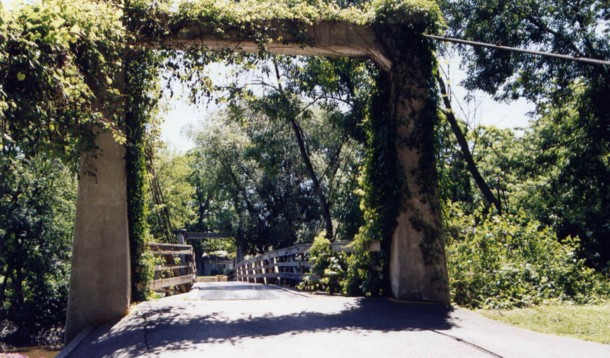

Photos courtesy of Patrick S. O'Donnell. Please do not reuse without permission. This bridge employs an interesting system of cable stays and inclined suspenders. It appears the first three floor beams (of the main span from each tower) are met by a stay coming from the tower and and a suspender inclined from the main cable back toward the tower.
